1947-53

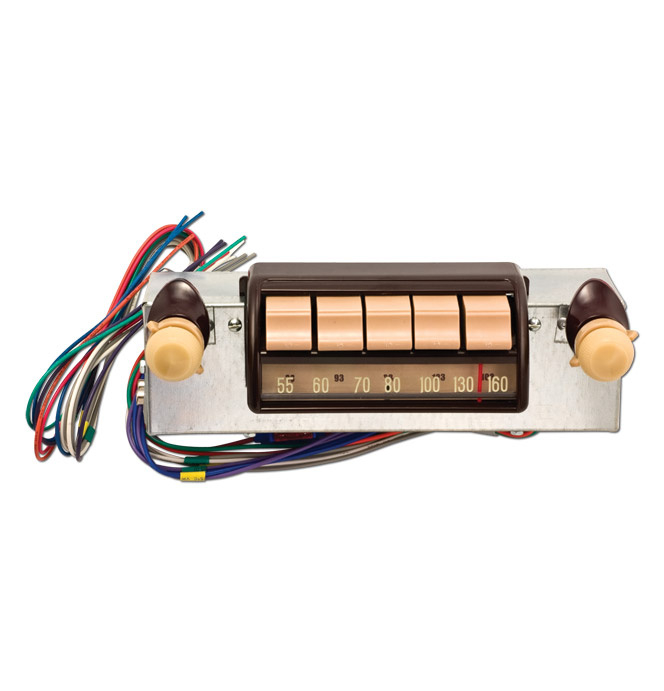

1947-53 Chevrolet Truck AM/FM Bluetooth® Radio
Part Number: 69-042301
1947-53 Chevrolet Truck AM/FM Bluetooth® Radio
Small size, BIG features!
•Looks original but offers today's technology
•3¼" case depth allows room for electric wipers, air conditioning
•AM dial scale in foreground looks original - FM dial scale in background •Analog controls look and feel like the original radio
•All controls easily accessible. Volume, bass, treble, balance, fader and tuning from original-looking controls
•LED dial lights will never need replacing •Digitally tuned AM/FM Stereo front end provides stable, high quality reception
•11.5 - 16.0 Volts DC negative ground input only
•Maximum power = 180 watts RMS (45 watts x 4 speakers 4O, 14.4V, 1kHz) Click to see larger pictures •Do not use original speakers
•Uses original antenna •Sensitivity (FM S/N 30dB) typ 5 dBµ, (AM S/N 20dB) typ 29 dBµ
•10 presets (5 AM, 5FM) •Digitally tuned receiver with analog display
•Dimensions: 9" W x 3.25" H x 4.6" D. Depth behind dash is 3.25" at shafts
•Auxiliary inputs (RCA jacks). Standard (Motorola) antenna jack
•½" D shafts on controls for mounting (same size and thread as original shafts)
•Memory retention (presets and other user settings) more than 40 years with power disconnected
•3 RCA jacks for left channel, right channel and sub-woofer line outs
•3.5 mm phone jack for input from iPod, satellite radio or MP3 player
•Switch selectable for 1,2,3 or 4 speakers
•Switch selectable for North America or Europe mode
•Includes a 6 foot 3.5mm male-to-male auxiliary cable with every radio
• Bluetooth 3.0 EDR compliant
• Built in microphone for HFP (hands-free profile)
• HSP, A2DP, AVRCP profiles supported
• Programmable audio equalizer
• Place/answer calls or stream your favorite programs while maintaining original appearance!
