1947-54
Chevy Truck Aluminum Radiator 1947-55
Part Number: 41-4754568

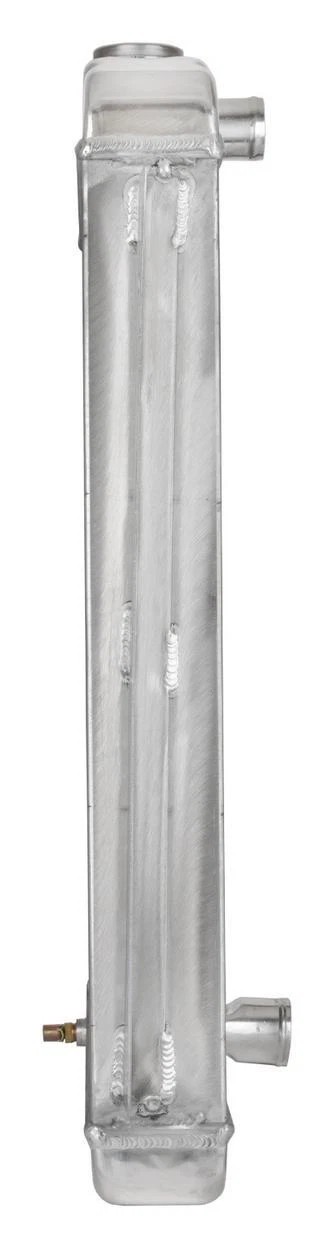

1947-1954 Chevrolet Pickup Truck Aluminum Performance Radiator
1947-1954 Chevrolet Pickup Truck Aluminum Performance Radiator. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- (2) 1.25 inch Tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto/maunal trans
- Direct fitment for 1947-54 Chevrolet Truck
Radiator Specs
- Core Height 20.5 inch / +/- 50.8 cm
- Core Width 19.2 inch / +/- 48.76 cm
- Overall Height 27 inch To Cap / +/- 68.58 cm
- Overall Width 22.6 inch / +/- 57.40 cm
- Overall Thickness 3 inch / +/- 76.2 cm
- Tubes (2) 1.25 inch Tubes / +/- 31.75 cm
- Upper Hose 1.50 inch / +/- 38.10 cm
- Lower Hose 1.75 inch / +/- 44.45 cm
| Specificatie | Omschrijving |
|---|---|
| Lengte | 74 cm |
| Breedte | 64 cm |
| Hoogte | 21 cm |
