67.31 x 31.74 mm

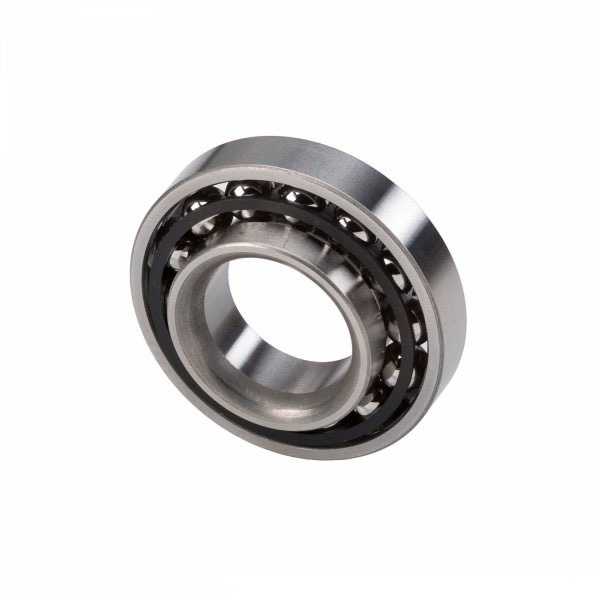

Wheel Bearing Front Inner. 1958-59
Part Number: B-70 OverzichtWheel Bearing Front Inner. 1958-59 Chevrolet / GMC Truck
Buiten diameter 67.31 mm
Asgat diameter 31.74 mm
Bore (Inch) | 1.250 |
Bore (MM) | 31.747 mm |
Design | Single Row Angular Contact |
Inner Race Bore (Inch) | 1.250 |
Inner Race Bore (MM) | 31.747 mm |
Inner Race Radius (Inch) | 0.140 |
Inner Race Radius (MM) | 3.556 mm |
Inner Race Width (Inch) | 0.701 |
Inner Race Width (MM) | 17.805 mm |
Outer Race Bore (Inch) | 2.210 |
Outer Race Bore (MM) | 56.134 mm |
Outer Race Outside Diameter (Inch) | 2.650 |
Outer Race Outside Diameter (MM) | 67.310 mm |
Outer Race Width (Inch) | 0.516 |
Outer race Width (MM) | 13.106 mm |
Outside Diameter (Inch) | 2.650 |
Outside Diameter (MM) | 67.310 mm |
Part Description | Wheel Bearing |
Series | FWBS |
Type | E-1 |
Width (inch) | 0.810 |
Width (MM) | 20.574 mm |
