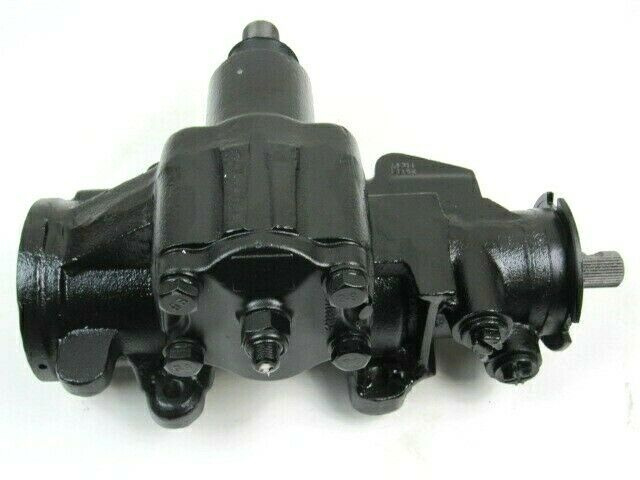

1964-1988 GM Chevy 800 Power Steering Box
Part Number: 39-4009
1964-1988 GM Chevy 800 Power Steering Box
13/16'-36 Input shaft Black
GM 800 Series power steering boxes have a 16:1 ratio and were used in midsize GM cars from 1964-1988.
Painted black and include -6 AN fittings to make it easier to fabricate hoses if needed.
Pitman arm not included.
No core return is required.
Application
- 1965-70 Chevy Full-size
- 1971-76 Chevy Full-size
- 1967-69 Camaro/Firebird
- 1970-81 Camaro/Firebird
- 1964-67 Chevelle/Malibu/A-Body
- 1968-72 Chevelle/Malibu/A-Body
- 1973-77 Chevelle/Malibu/A-Body
- 1968-74 Nova/X-Body
- 1975-79 Nova/X-Body
- 1978-81 Malibu/A-Body
- 1982-88 Monte Carlo/G-Body
Steering Box Type: Power
Steering Box Orientation: Front Steer
Steering System Type: OEM/Stock
Steering Ratio: 16:1
Turns Lock to Lock: 3-1/4 Turns
Material Type: Cast Iron
Finish: Painted
Input Shaft Spline 36
